Disclaimers!

1. This is still work in progress. Although common API is established, underlying algorithms are subject to change.
2. It is toy project, but I really wanted to put any best practices, knowledge from papers and obscure blogs that I ever read.
3. Github link is wtfnukee/minimodal

Prologue #

I have special flavor of tism where I mess around with big systems - especially ML infra, servers, GPUs. I read dozen of papers and creators’ blogs on Numpy and Pandas out of curiosity - I can see code in repo, but how does one come up with all design choices? What was the incentive?
I’ve also been huge fan of Modal and while researching their approaches got inspired by Erik Bernhardsson (Founder of Modal) motivation. I already watched and read a lot of talks on some implementation details, but that gave me enough enthusiasm to finish this project.

Design #

Before even opening your editor of choice (or prompting your favourite LLM) one should ask yourself “How do I want to do this?”. Or rather “How do I even approach this?”.
I’ve already drafted most of architecture when i encountered two year old Modal Labs Deep Dive. While some interfaces changed, core ideas stay the same:

• The Python script is the source of truth. No YAML, no Terraform, no Dockerfiles. If I write @app.function, the system must figure out the rest.
  • “Modal’s goal is to make running code in the cloud feel like you’re running code locally. You don’t need to run any commands to rebuild, push containers, or go to a web UI to download logs.”
• I don’t want to spend any extra time on wrangling with infra - I as user am an ML Engineer, not a Devops
• I want iterate fast, so my system should support tight feedback loop. If I change a line of code, the remote execution should reflect that change instantly without a five-minute “rebuild-and-deploy” cycle.

Primitives #

So, what do we want to work with? Lets establish nomenclature. Here’s the rewritten section with the requested changes:

1. Functions - well, we have some functions, that we ran locally and now want to run with our shiny new framework

• In the old world, this was a “service” or a “pod”.
• Now it’s just @app.function decorator, just specify hardware and image.

2. Images - where our function will run.

• Again, no wrestling with Dockerfiles.
• Just Image.debian_slim().pip_install("torch"). (But you can still customize Dockerfiles)

3. Volumes - someplace to store datasets, model weights and their outputs

• This replaces Persistent Volume Claim in K8s without latency of S3

4. Secrets - it’s nice to have convenient secrets management for OpenAI API keys for your AI notetaker app
5. Webpoints - expose your function to other team via REST for fast prototyping
6. Scheduler - run jobs periodically (e.g. with Cron)
7. App - this is entrypoint that ties the infrastructure to the code.

SDK #

Before drawing backend architecture on whiteboard, lets focus on user facing side.
As user, I want minimal rewrite of existing code. @app.function decorator does just that

@app.function()
def my_function(x):
    return x * 2

After registering function for remote execution i can still call this function locally (my_function(5)), remotely blocking (my_function.remote(5)) and asynchronously

future = my_func.spawn(5)  # returns immediately
result = future.result()   # blocks when you need the result

We often run batch jobs

futures = my_func.map([1, 2, 3, 4, 5])
# or results = [f.result() for f in futures]
results = gather(*futures)

and sometimes want to stream results instead of waiting until the end

future = generate_items.spawn()
for item in future.stream():
    print(item)  # Prints 0, 1, 2, ... as they arrive

Image builder speaks for itself

image = (
    Image.debian_slim(python_version="3.11")
    .apt_install("git", "curl")
    .pip_install("numpy", "pandas")
    .run_commands("echo 'Setup complete'")
)

Although not all features of Modal’ Image builder are ported, you can actually run example above and it would work! (There’s a bit of codegen for Dockerfile under a hood, in real Modal Docker is not used at all, I’ll get to that in a minute.)

Do you actually want to read all of this? Just open https://modal.com/docs/reference/modal.App, it’s all the same.

import modal

app = modal.App()

@app.function(
    secrets=[modal.Secret.from_name("some_secret")],
    schedule=modal.Period(days=1),
)
def foo():
    pass

Like cmon, just replace modal with minimodal. You wont use this anyway. Or if you do wtfnukee/minimodal/sdk/app.py

Claude suggested that I write about implementing Secrets, Volumes and Webpoints
They really implemented and work as expected, but it’s not that interesting.

Whiteboard #

Okay, here’s truly fun part - designing engine.

We’ve established what we want from the system, but how is it implemented?

Functions #

Below I’ll use terms pickle and cloudpickle interchangeable, but of course use only cloudpickle as it is safer alternative.

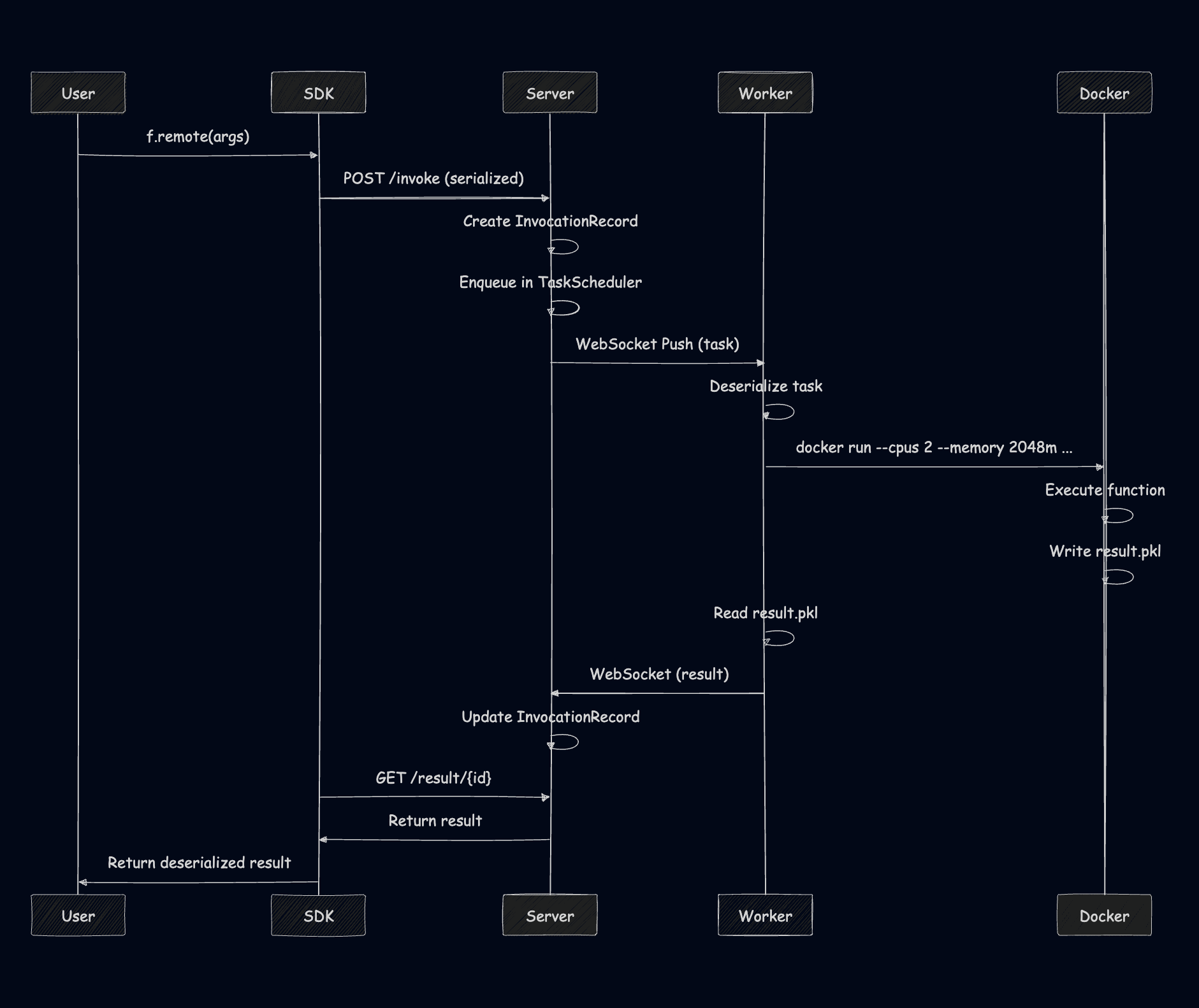

Each function goes through three stages:

Deploy #

1. Take user code
2. pickle(function)
3. POST /deploy to Control Plane
4. Build Image
5. Store metadata (name, docstring, signature)
6. Return function_id

Invoke #

1. .spawn(args) is called
2. pickle(args)
3. POST /invoke
4. Queue task
5. Return invocation_id

Execute #

1. Server assigns worker to that task
2. Deserialize func + args
3. Execute
4. Serialize result
5. Websocket push to client with results

Separation is intentional because you can deploy in isolation from invocation (it also naturally supports caching) and execution is separated from invocation.
Also, first version used polling for results instead of websockets and while it is simple it has big overhead.

Okay, but who do Client talks to?

Control Plane #

Gateway #

Main part is FastAPI server: REST API for SDK communication + WebSocket endpoints for workers. Initially, MiniModal used HTTP polling where workers would constantly ask the server “is there work for me?” I’ve since refactored to a WebSocket push model where the server instantly pushes tasks to available workers.

Websocket manager #

There is one to keep connection with workers and one to gather results.

Metadata Store #

All Functions, Invocations, Results, Secrets, Volumes, Users metadata lies in SQLite for now, to keep the control plane zero-config and portable.

Task Scheduler #

Task scheduler is greatly inspired by one of YTsaurus. (It didn’t really like Spark one) It has three functions:

• Receiving execution operation requests from users.
• Communication with workers — they come to the scheduler with heartbeats and report on available resources, and the scheduler responds with new jobs to be executed.
• Resource allocation between operations.

What is implemented:

• User Isolation: Each user has their own task queue preventing resource starvation
• Concurrency Limits: Users are capped at their quota limit for parallel tasks (default: 5)
• Round-Robin Fairness: Fair distribution across eligible users
• Bin Packing: Match task resource requirements to worker capabilities
• Resource-Aware: Consider CPU and memory requirements when assigning tasks

Last two points are still under heavy work.

Multi-tenancy in Practice #

The key insight from YTsaurus is that a shared compute platform must prevent one user from starving others. If Alice submits 1000 tasks and Bob submits 1, Bob shouldn’t wait for all of Alice’s work to complete.

Each user gets their own queue with a configurable quota (stored in UserRecord). The scheduler round-robins through users who have pending tasks AND haven’t hit their limit:

# Simplified scheduling logic
for user in users_with_pending_tasks:
    if user.active_count < user.quota_limit:
        task = user.queue.pop()
        assign_to_available_worker(task)
        user.active_count += 1

This means Bob’s single task gets scheduled in the next round, even if Alice has 999 tasks waiting.

Scheduling Flow:

1. Tasks are enqueued per user in TaskScheduler
2. Scheduler continuously monitors available workers
3. When a worker becomes available, scheduler finds the next eligible user
4. Task is assigned to worker that meets resource requirements
5. Worker executes task and returns result

This video on CPU Scheduler helped me the most to understand this type of algorithms - The Fancy Algorithms That Make Your Computer Feel Smoother

Autoscaler #

There is choice - manually start workers with predefined resources or use autoscaler.
Basically we monitor task queue depth and apply scaling policy:

• Scale UP: When pending tasks > available workers
• Scale DOWN: When idle for scale_down_delay seconds
• Respect min_workers and max_workers bounds

Image Builder #

Remember I said something about Dockerfile codegen? Well yeah:

DOCKERFILE_TEMPLATE = '''FROM python:{python_version}-slim

WORKDIR /app

# Install system dependencies
RUN apt-get update && apt-get install -y --no-install-recommends \
    gcc \
    && rm -rf /var/lib/apt/lists/*

# Install Python dependencies
{pip_install}

# Copy function code
COPY function.py /app/function.py

CMD ["python", "-c", "print('Container ready')"]
'''

Content-Based Caching #

Remember that “tight feedback loop” design goal? If you change your code but not your dependencies, why rebuild the entire image?

Each Image object computes a content hash from its configuration:

def content_hash(self) -> str:
    content = f"{self._base}|{self._apt_packages}|{self._pip_packages}|..."
    return hashlib.sha256(content.encode()).hexdigest()[:12]

Before building, we check: if image_exists(f"minimodal:{hash}"): return cached. Same deps = same hash = skip the build. This is why iterating on function code feels instant - the image layer is already there.

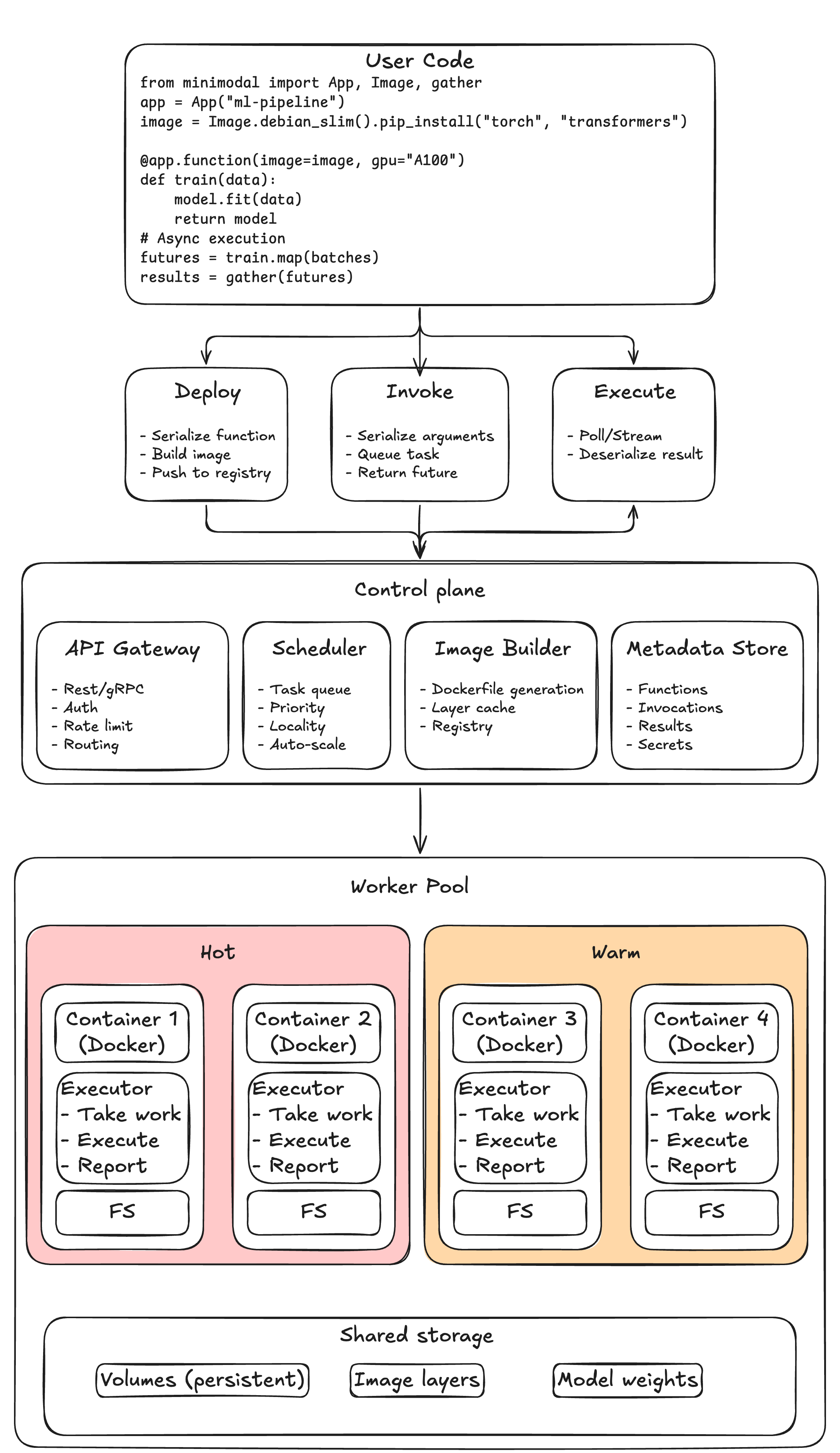

I have this diagram to sum up all I’ve said before about control plane

Workers #

Akshat Bubna talks about Modal runtime in great detail, they’ve built own container solution and file system.

At its core, MiniModal’s worker system is about transforming code into execution - taking Python functions and running them somewhere, somehow, with the right resources and isolation.

Unlike Modal’s custom runtime built on gVisor, MiniModal embraces Docker’s simplicity. Yes, there’s startup latency. Yes, it’s not as lightweight. But it works.
The worker system follows a deliberate separation of concerns:

1. Worker Process: The persistent, long-lived coordinator
2. Function Container: The ephemeral, isolated execution environment

The worker process acts as a bridge between the control plane and execution, maintaining a persistent WebSocket connection to receive tasks via a push-based model that eliminates polling inefficiency. It handles connection management, task reception, execution coordination, result delivery, and resource monitoring while being persistent, stateful, and single-threaded for simplicity.

While the worker process could execute functions directly, that would defeat the purpose of isolation. Instead, each function runs in its own Docker container - a lightweight, isolated environment with exactly the dependencies and resources it needs.

Resource management ensures tasks run efficiently by validating system capabilities and enforcing resource limits. The worker uses soft CPU limits for fair distribution, hard memory limits to prevent OOM errors, and process limits to guard against fork bombs. Before executing a task, the worker checks system resources, worker configuration, and task requirements to determine feasible allocations, preventing the “works on my machine” problem.

Fault Tolerance #

In distributed systems, failures aren’t exceptions - they’re expected. Network hiccups, OOM kills, timeouts. A production system needs to handle these gracefully.

Retries with Exponential Backoff #

Each function can specify its retry behavior:

@app.function(timeout=60, max_retries=3, retry_backoff_base=2.0)
def flaky_api_call():
    ...

When a task fails, we don’t retry immediately (that would likely fail again). Instead:

• 1st retry: wait 2^0 = 1 second
• 2nd retry: wait 2^1 = 2 seconds
• 3rd retry: wait 2^2 = 4 seconds

This gives transient issues time to resolve.

Dead Letter Queue #

What happens after all retries are exhausted? The task moves to a Dead Letter Queue with status DEAD_LETTER. This prevents poison messages from blocking the system while preserving them for inspection:

GET /dead-letter-queue → list of permanently failed tasks
POST /dead-letter-queue/{id}/retry → manual retry after fixing the issue

Circuit Breaker #

If a worker fails 5 tasks within a 5-minute window, something is probably wrong with that worker (bad state, network issues, resource exhaustion). The circuit breaker “trips” - marking the worker unhealthy and stopping task assignment for a cooldown period. After 60 seconds, we cautiously try again.

This prevents a failing worker from consuming (and failing) the entire task queue.

Observability #

You can’t fix what you can’t see. MiniModal exposes several endpoints for monitoring:

• GET /health - Basic liveness check
• GET /ready - Readiness probe (DB connected, scheduler running)
• GET /stats - System overview: function count, invocation counts by status, worker states, queue depth, average task duration

The stats endpoint is particularly useful for debugging:

{
  "invocations": {"queued": 5, "running": 2, "completed": 1847, "failed": 3},
  "workers": {"total": 4, "idle": 2, "busy": 2},
  "uptime_seconds": 3600
}

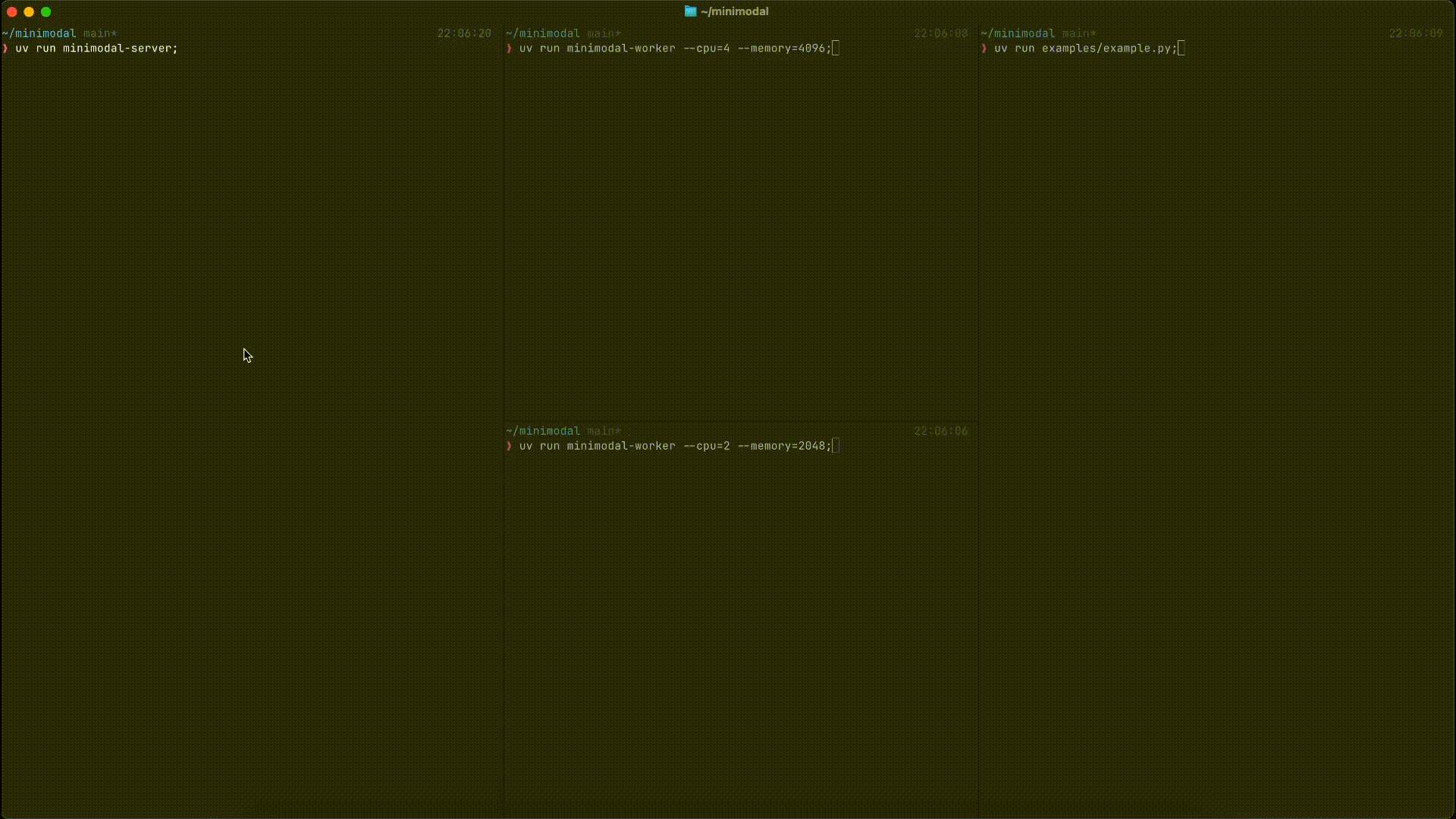

I also vibecoded dashboard, which you can see in demo ar a top of the post.

Storage #

There’s more to tell than just Volumes.

[Ephemeral] ←-------------------------------------------------→ [Persistent]
  Cache          Temp Files      Datasets      Models       System Images
  (ms-seconds)   (seconds-min)   (minutes-hours) (hours-days) (days-months)

What do we actually want to store on our drives? This understanding can help us utulize storage effectively

• Images: Our functions require images for containers to run, so we can store popular images, like debian_slim or pytorch/pytorch, because it is ML platform after all.
• Libraries and Layers: We can store some popular libraries to load them faster and even share Docker Layer caches with those dependencies between images.
• Task Artifacts: Functions use some data and transform to another - we can cache popular datasets and models and transformed data between steps, like in DVC.
• The User’s Workspace: Mounting local files as volumes.

Lessons learned and Roadmap #

Building MiniModal started as a way to kill time during unemployment, but it is fun way to implement everything I read in year. To wrap up this post, here is what we’ve achieved:

• A Pythonic SDK: Distributed computing that feels like writing local code.
• WebSockets Everywhere: A high-performance, push-based architecture that eliminates the overhead of HTTP polling.
• True Isolation: Container-based execution that ensures “if it works on my machine, it works in the cloud.”
• Production-Grade Fault Tolerance: Retries with exponential backoff, dead letter queues, and circuit breakers.
• Multi-Tenant Scheduling: YTsaurus-inspired fair scheduling with per-user quotas.
• Content-Based Caching: Same dependencies = skip the rebuild.

This might be the end of this blog, but it’s just the beginning for MiniModal. There is a lot of things left unimplemented or not talked about so stay tuned and check out repo wtfnukee/minimodal.
